Moisture analyzer
Overview
Characteristics
DATA SHEET
Accessories
Overview
Overview

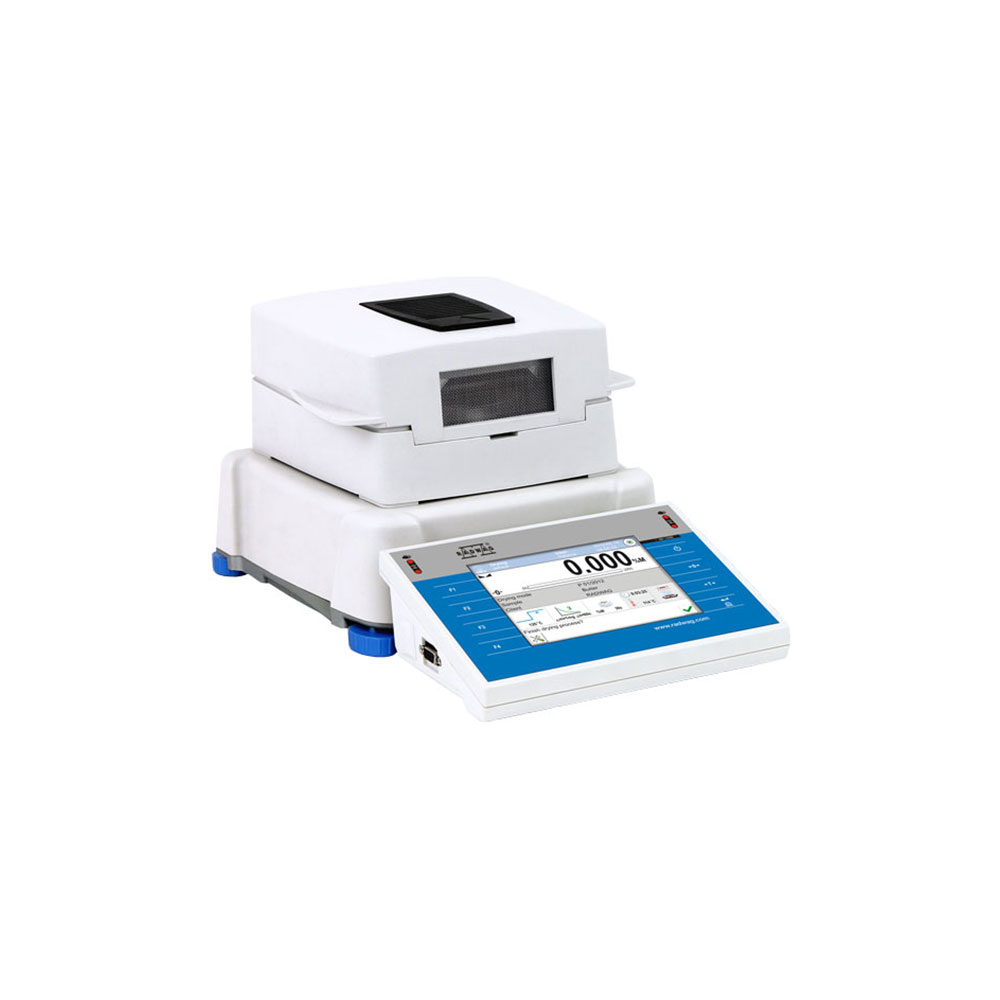

Moisture analyzer is a laboratory measuring instrument intended to determine relative moisture content in samples of different substances. MA 3Y features 5,7″ LCD colour touch panel which provides new possibility within the scope of balance operation and presentation of measurement result. It features extended databases containing programmable drying modes related to the database of samples. The MA 3Y series enables printing and exporting charts presented on its display to a BMP file. Customization of instrument’s settings is possible thanks to extended user profiles. The balance level is monitored by LevelSENSING system, RADWAG patented solution, which uses a system of an electronic level. Standard and user defined printouts allow for maintaining documentation complying with GLP/GMP requirements practically in any organization.Characteristics

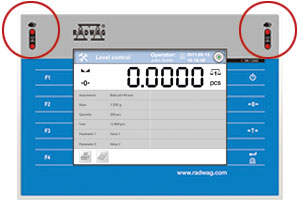

Électroniques indicateur de niveau
Fonctions :
- Fonction d’alarme

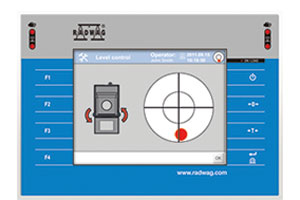

- Indicateur de niveau graphique
- Inclinaisons acceptables programmables

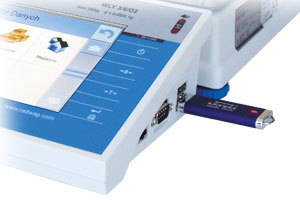

Échange de données par le biais Périphériques de stockage USB
Fonctions :
- Exportation de données de pesage
- Import/export bases de données
- Exporter/importer les paramètres de balance
- Echanger des données entre les soldes
Infrarouge détecteurs de proximité
Fonctions optionnelles :
- Fonction d’impression
- Fonction TARE
- Capteur
Portabilité
Option supplémentaire :
- Avec les soldes
- Un terminal sans fil
Communication interfaces
Option supplémentaire :
- Ethernet
- 2
DATA SHEET
| Max capacity [Max] | 200 g |
| Readability [d] | 1 mg |
| Tare range | -200 g |
| Pan Size | ø 90, h= 8 mm |
| Working temperature | +10 – +40 °C |
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
| Display | 5,7” (touch screen) |
| Packaging size | 595×395×420 mm |
| Interface | 2 x USB 2.0; 4IN / 4OUT; RS 232; Ethernet 10/100Mbit, Wi-Fi |
| Net weight/gross weight | 6/10 kg |
| Max sample weight | 200 g |
| Moisture readout accuracy | 0,001 % |
| Moisture content repeatability | +/-0,05% (sample ~ 2g), +/-0,01% (sample ~ 10g) |
| Drying temperature range | max 160 °C |
| Max sample height | 20 mm |
| Heating module | IR emitter |
| Power of heating device | 400 W |
| Drying mode | 4 drying modes (standard, quick, step, mild) |
| Auto switch-off options | 4 modes (time, defined, automatic, manual) |
| Additional functions | sample identification, drying diagram |
Accessories
Accessoires d’analyseur d’humidité
Imprimantes thermiques
Imprimantes à impact
Claviers, interrupteurs externes
Scanners de codes barres
Câble RS 232 (balance – imprimante Epson/Citizen)
Câble RS 232 (balance – ordinateur)
Câble de mise à la terre
Valises pour dessiccateurs
E2R système
